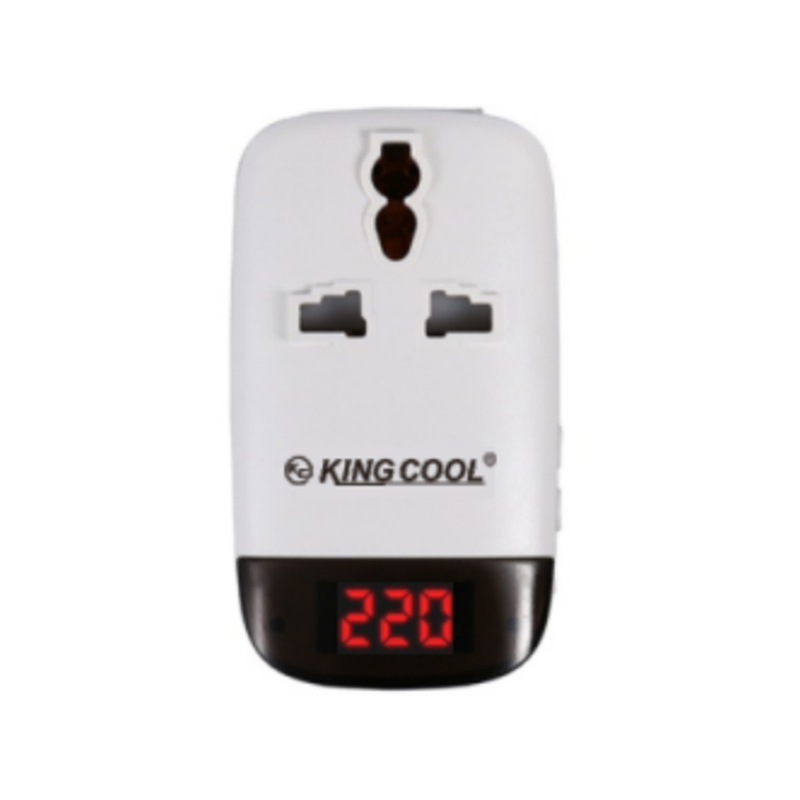

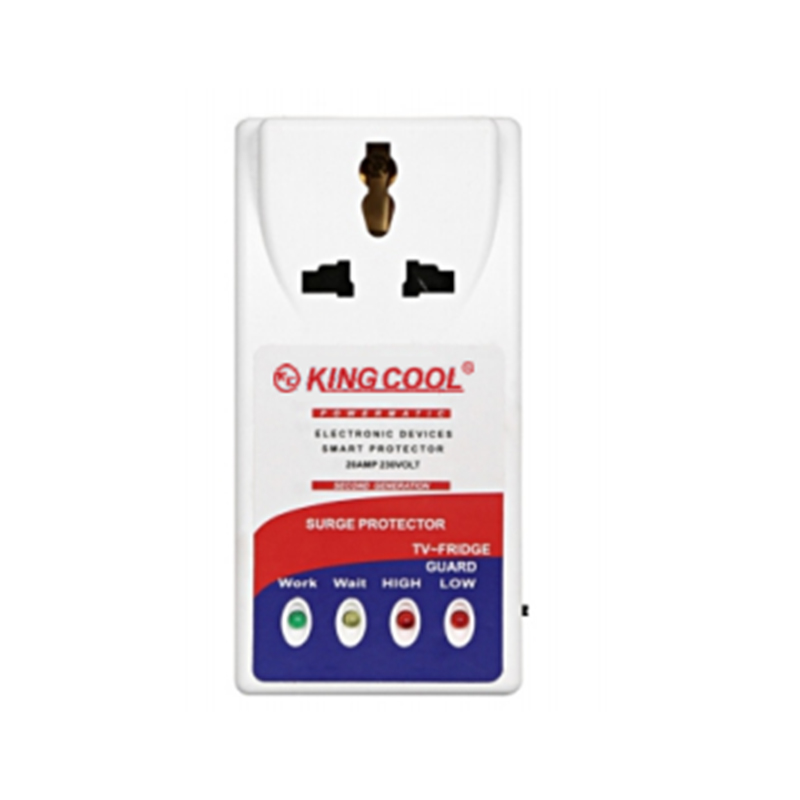

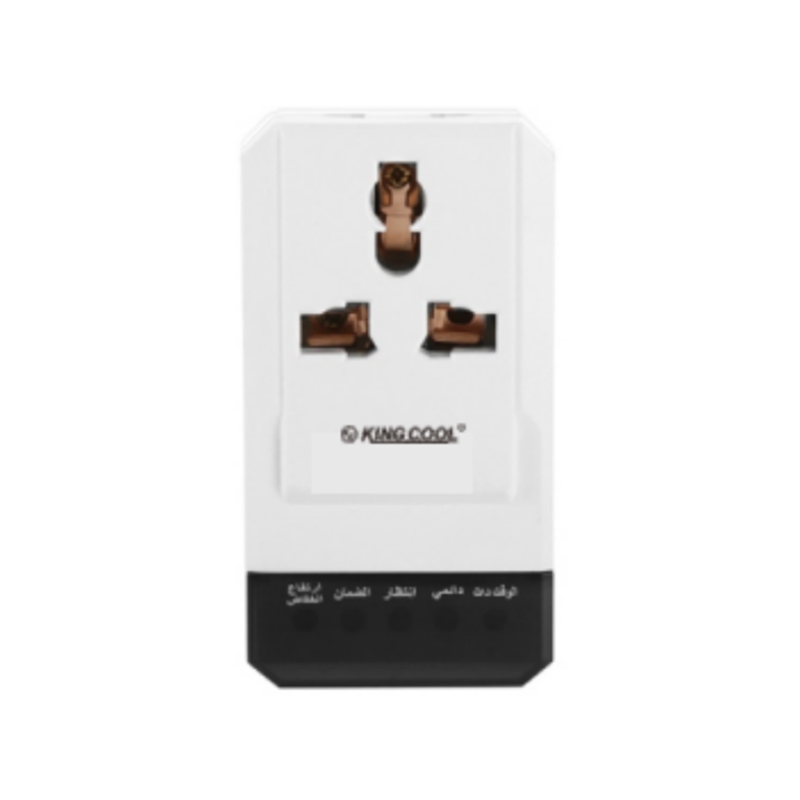

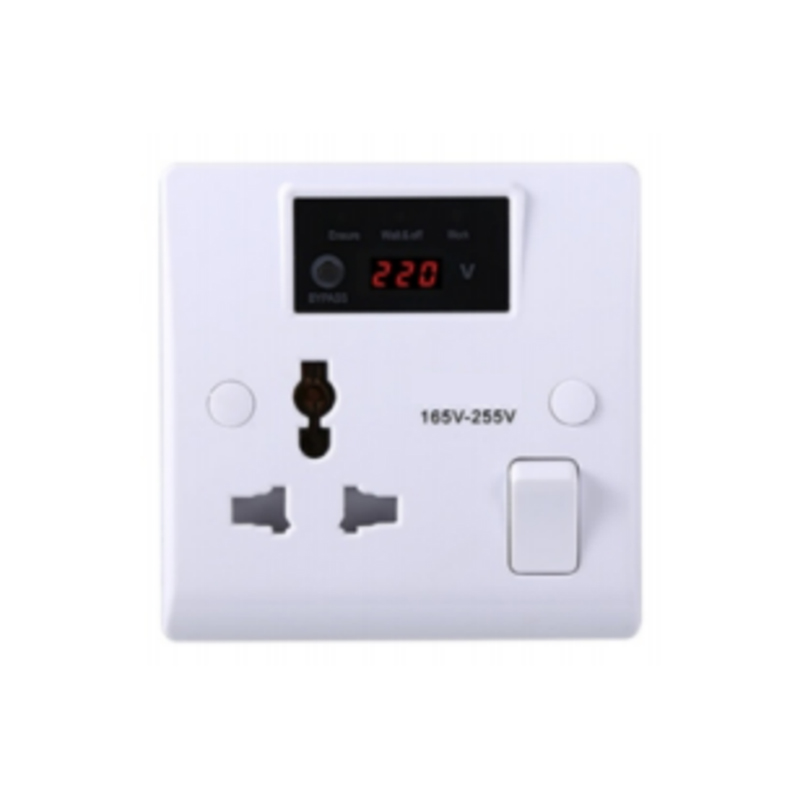

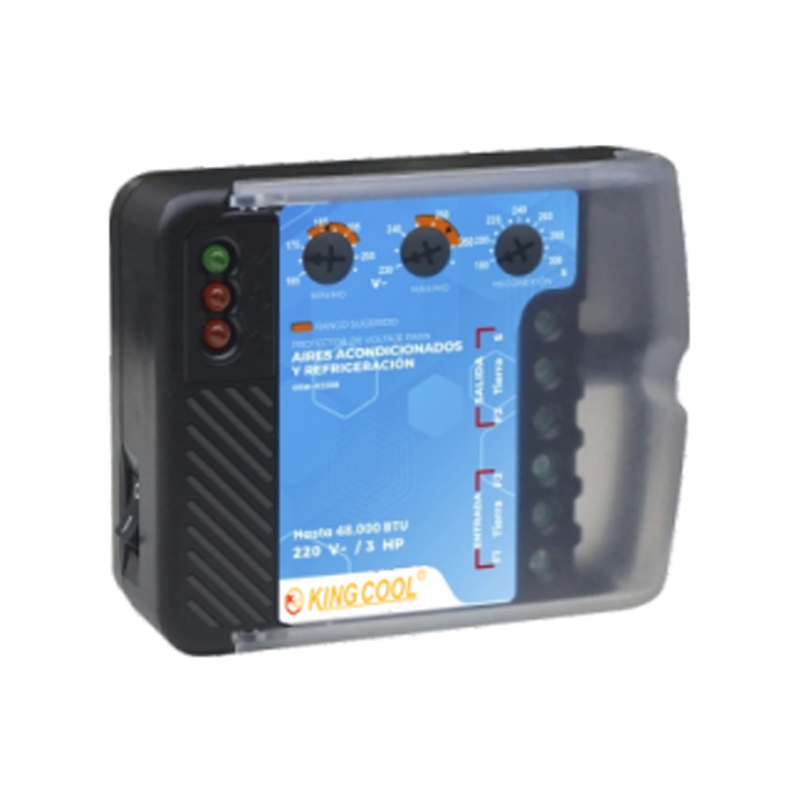

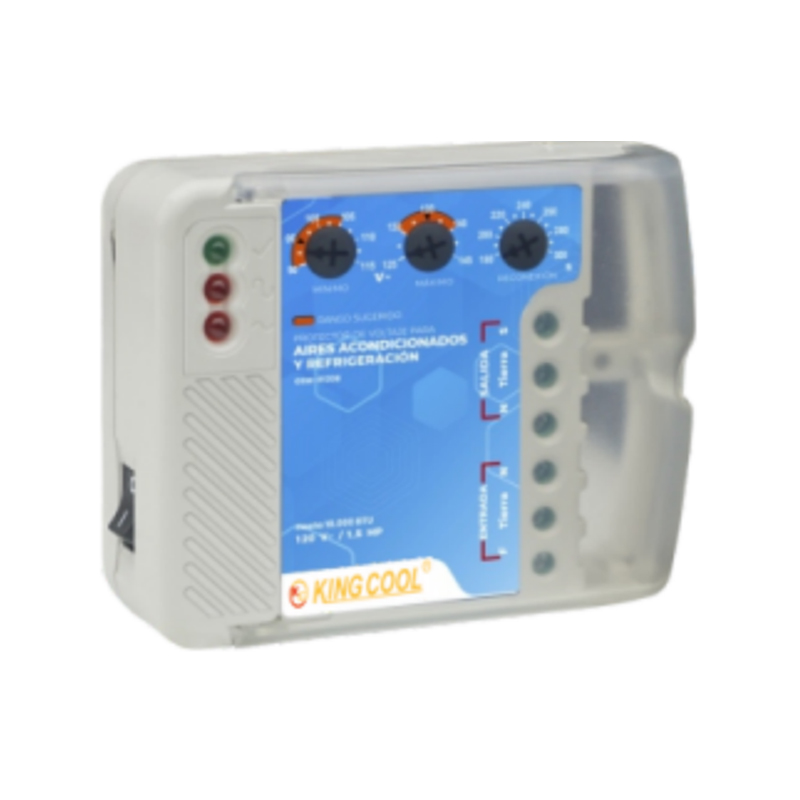

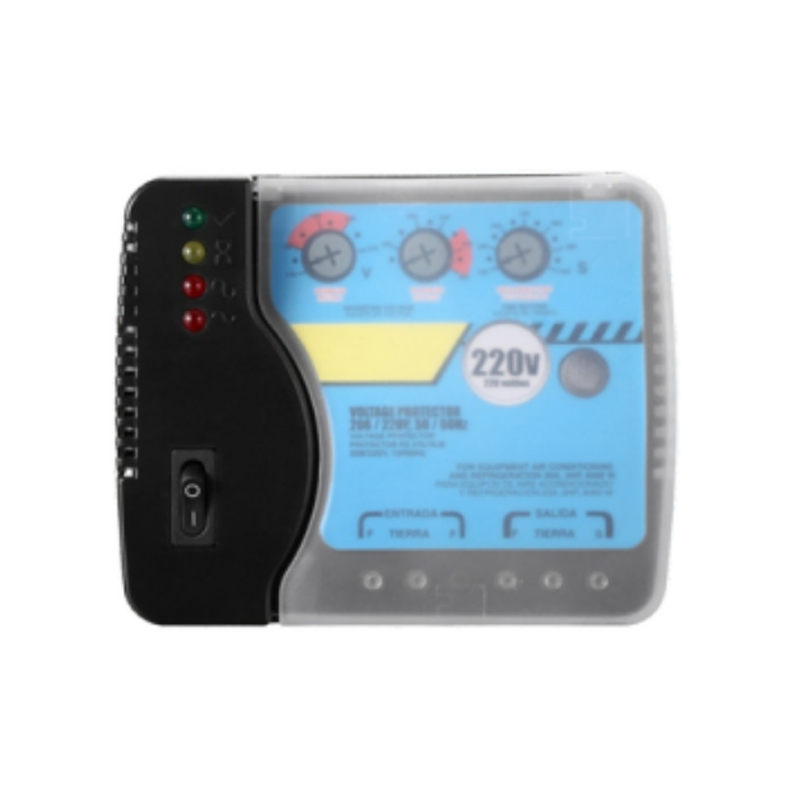

READ MOREModel | N008-220 | N011-220 | N020-120 | N020-220 | 1004 | 1618 | 2123 | 1711 |
Operating Voltage | 220V AC | 220V AC | 120V AC | 220V AC | 220VAC | 220V AC | 220VAC | 220VAC |
Operating Frequency | 50Hz-60Hz | 50Hz-60Hz | 50Hz-60Hz | 50Hz-60Hz | 50Hz-60Hz | 50Hz-60Hz | 50Hz-60Hz | 50Hz-60Hz |
Under Voltage Cut-off | 170V~197V adjustable | 170V~220V adjustable | 90V~120V adjustable | 165V~220V adjustable | 120VAC | 165V AC | 165V AC(140V~180V adjustable) | 165V AC(130V~180V adjustable) |
Over Voltage Cut-off | 265V AC | 220V~270V adjustable | 120V~145V adjustable | 220V~265V adjustable | 255VAC | 255V AC | 260V AC(140V~180V adjustable) | 260V AC(230V~280V adjustable) |
Surge Protection | 140 Joules | 330 Joules | 330 Joules | 330 Joules | ||||
Delay Time | 3 min | 3 min-5 min adjustable | 3 min-5 min adjustable | 3 min-5 min adjustable | 5s/210s | 5s/210s | 5s/210s | 5s(5s-210s adjustable) |
Output Capacity | 20A,4400W | 30A,6600W | 30A,3600W | 30A,6600W | 13A,2860w | 13A,2860W | 13A,2860w | 15A,2860w |
Packing | Double Blister | Double Blister | Double Blister | Double Blister | Double Blister | Double Blister | Double Bister/Color Box | Double Blister/Color Box |
Warranty | 3 Years | 3 Years | 3 Years | 3 Years | 1 Year | 1 Year | 1 Year | 1 Year |
