CH85 microwave capacitor

CH85 microwave capacitor

Product Features:

The capacitor is made of compound oil soak medium and has inner discharge resistance. It has the advantages of anti-high-voltage capacity and steady electricity performance. it is for the help of the power output of the patron.

Product Application:

It is suitable for double-voltage rectification of microwave ovens and is helpful to the generation of magnetron microwaves.

  • CH85 microwave capacitor
PREV：CBB60
NEXT：CBB65-R3
Parameter
Capacitance 2100V,

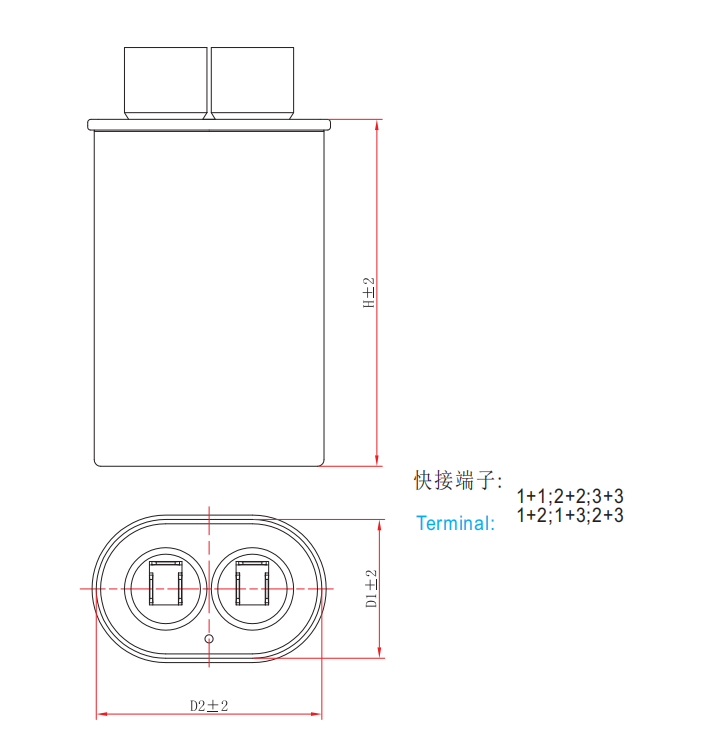

D1 D2 H
0.5μF~0.65μF 32.5 52.5 60
0.66μF~0.75μF 65
0.76μF~0.92μF 70
0.93μF~1.05μF 75
1.06μF~1.1μF 80
1.11μF~1.15μF 85
1.16μF~1.2μF 90

Capacitance 2500V,
D1 D2 H
0.5μF~0.65μF 32.5 52.5 60~70
0.66μF~0.75μF 70~80
0.76μF~0.92μF 80~90
0.93μF~1.05μF 90~100
1.06μF~1.1μF 100~105
1.11μF~1.15μF 105~110
1.16μF~1.2μF 110~120

Technical parameter Reference value
Voltage range 2100V,2500V
Capacitance range 0.5μF~1.2μF
Capacitance tolerance ±3%
Climate type 10/85/21
Test voltage Electrode T-T:4.3Un(VDC)/10s
Shell T-C:2.4*Un+1200(VAC)/2s
Dissipation factor ≤0.003(1KHz)
Class of operation P、S
Reference standard GB/18939.1,IEC61270-1,VDE0560 PART2,JIS C 4908
