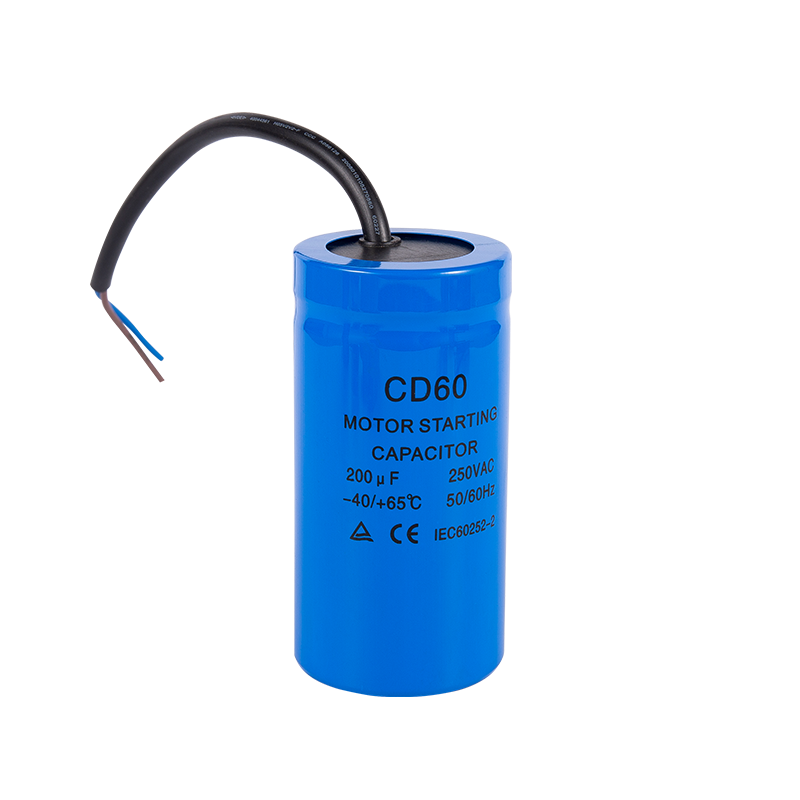

CD60

CD60

Product Features:

CD60 starter capacitor mainly is used for High torque motor start, such as air conditioning and freezer compressors, water pumps, or other Single-phase power supply systems asynchronous motors and Three-phase asynchronous motors use single phase power supply.

  • CD60
  • CD60
  • CD60
PREV：SPP5 Capacitor
NEXT：CBB61
Parameter
Capacitance 110V 125V 160V 220V  250V 300V 330V
50 34*60 34*60 34*70 34*80 34*80 34*80 42*80
75 34*60 34*70 34*70 34*80 42*80 42*80 42*80
100 34*70 37*70 38*80 34*80 42*80 42*80  45*90
150 34*70 34*80 38*80 42*80 42*80 45*90 45*90
200 34*80 34*80 42*80 42*80 45*90 45*90 45*100
250 34*80 34*80 42*80 45*90 45*90 45*100  45*100
300 42*80 42*80 45*90 45*90 50*100 50*100 50*100
350 42*80 42*80 45*90 45*100  50*100 50*110 50*110
400 45*90 45*90 45*100 45*100 50*100 50*110 50*110
500 45*90 45*90 45*100 50*100  50*100 50*110 50*110
600 45*90 45*100 50*100 50*100  50*110  50*110 50*110
7000 50*90 50*100  50*110 50*110 50*110  50*110 63*110
800 50*100 50*110 50*110 50*110 50*110 63*110
1000 50*100 50*110 50*110 50*110 63*110
1200 50*110 50*110 63*110 63*110
1500 63*110 63*110 63*110

Technical parameter Reference value
Voltage range 110Vac~ 330Vac，50/60Hz
Capacitance range 20μF～1500μF
Capacitance tolerance ±10%(K),±20%(M)
Operating temperature range -20℃~65℃
Withstand voltage T-T 1.2Un/2s
T-C 2Un+1000Vac/60s(≥2000V)
Dissipation factor ≤0.15,100Hz，20℃
Altitude ≤2000m
Reference standard GB/T3667.2,IEC/EN60252.2,UL810
