How to Choose the Right Capacitor Model for Your AC Unit Replacement

Posted by Admin | 21 Aug

1 Understanding the Importance of Capacitors in AC Systems
- 1.1 Comparison of Capacitor Types
2 How to Determine the Correct Capacitor Specifications
3 Recognizing a Faulty Capacitor
- 3.1 Testing the Capacitor
- 3.2 Fault Comparison
4 Safety Precautions for Capacitor Replacement
5 Choosing Between Single and Dual Run Capacitors
- 5.1 Advantages and Disadvantages
6 Cost Considerations and Replacement Options
- 6.1 Cost Comparison
7 When to Hire a Professional

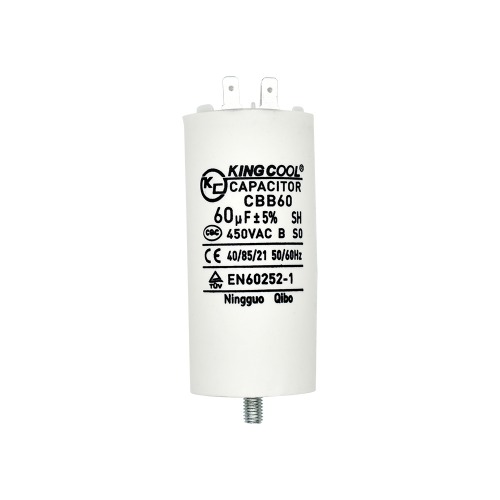

Understanding the Importance of Capacitors in AC Systems

An air capacitor for AC unit is an essential component that helps start and maintain the operation of your AC compressor and fan motors. It temporarily stores electrical energy and releases it to provide a boost during motor startup, ensuring the system runs smoothly.

Capacitors come in various types, including:

Start Capacitors: Provide a large initial surge for motor startup.
Run Capacitors: Maintain efficient motor operation during continuous use.
Dual Run Capacitors: Combine start and run functions for space-saving and simplified wiring.

Comparison of Capacitor Types

Type	Function	Typical Usage	Pros	Cons
Start Capacitor	High surge for motor start	Older AC compressors	High starting torque	Short duty cycle, must disengage after start
Run Capacitor	Continuous operation support	Most AC units	Improves efficiency and motor life	Cannot provide start boost alone
Dual Run Capacitor	Start + Run combined	Modern AC units	Space-saving, simplified wiring	Higher initial cost

How to Determine the Correct Capacitor Specifications

When replacing a capacitor, it is crucial to choose the right specifications. Key factors include:

Microfarad (µF) Rating

Refer to the AC unit nameplate or existing capacitor label for the exact rating.
Using the wrong AC capacitor for home air conditioner µF value can cause motor inefficiency or failure.

Voltage Rating

Voltage must meet or exceed the AC unit's electrical requirements.
Underrated voltage leads to overheating; slightly higher voltage is safe.

Specification Comparison

Specification	Recommended Value	Under-spec Risk	Over-spec Impact
Microfarad (µF)	As per nameplate	Motor may fail to start or run inefficiently	Slight efficiency variation
Voltage (V)	Match or exceed unit rating	Overheating, capacitor failure	Safe, minimal impact

Recognizing a Faulty Capacitor

Symptoms of a failing HVAC capacitor replacement include:

AC unit struggles to start
Humming noises from the compressor
Weak or inconsistent cooling
Frequent tripping of circuit breakers

Testing the Capacitor

Disconnect power and safely discharge the capacitor.
Measure capacitance with a multimeter; ±5% variance is acceptable.
Compare readings with specifications on the existing capacitor.

Fault Comparison

Symptom	Cause	Action
AC won't start	Open or shorted capacitor	Replace with correct capacitor for AC unit
Humming noise	Insufficient start boost	Test and replace if needed
Weak cooling	Capacitor losing efficiency	Replace to restore performance

Safety Precautions for Capacitor Replacement

Always disconnect the main power before working on AC units.
Wear protective gloves and goggles to prevent electrical shock.
Use insulated tools to discharge the capacitor safely.
Verify voltage is zero with a multimeter before handling.

Choosing Between Single and Dual Run Capacitors

Dual Run Capacitors: Support compressor and fan motors in one unit; save space and simplify wiring.
Single Capacitors: Separate capacitors for each function; typically used in older systems.

Advantages and Disadvantages

Type	Advantages	Disadvantages
Dual Run	Simpler wiring, space-saving	Higher upfront cost
Single	Lower cost per unit, easier individual replacement	More wiring required, occupies more space
